열교환기 내부 청소

기계 설명

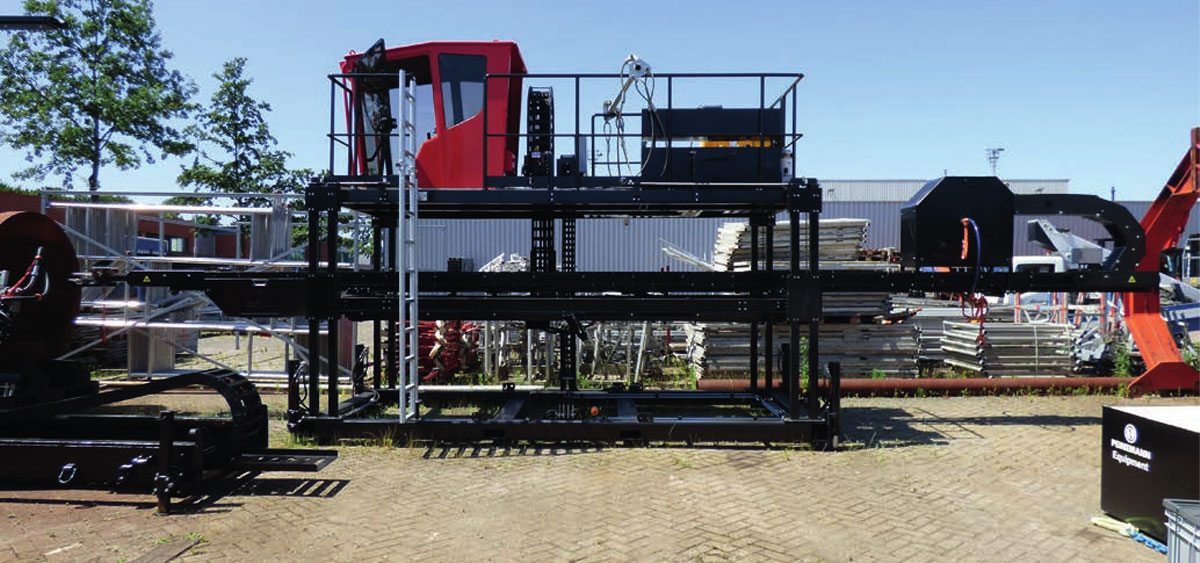

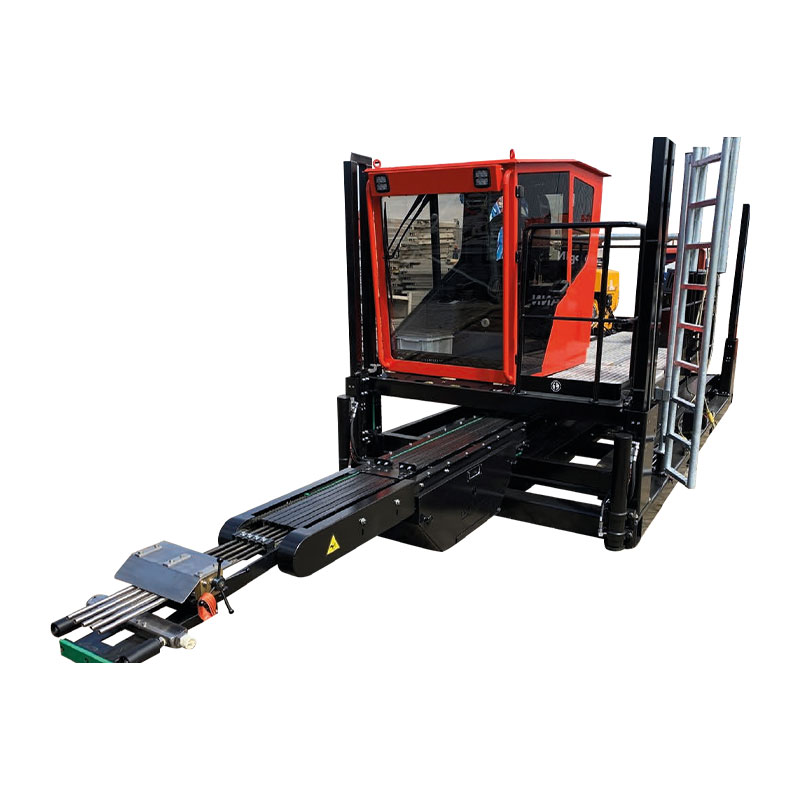

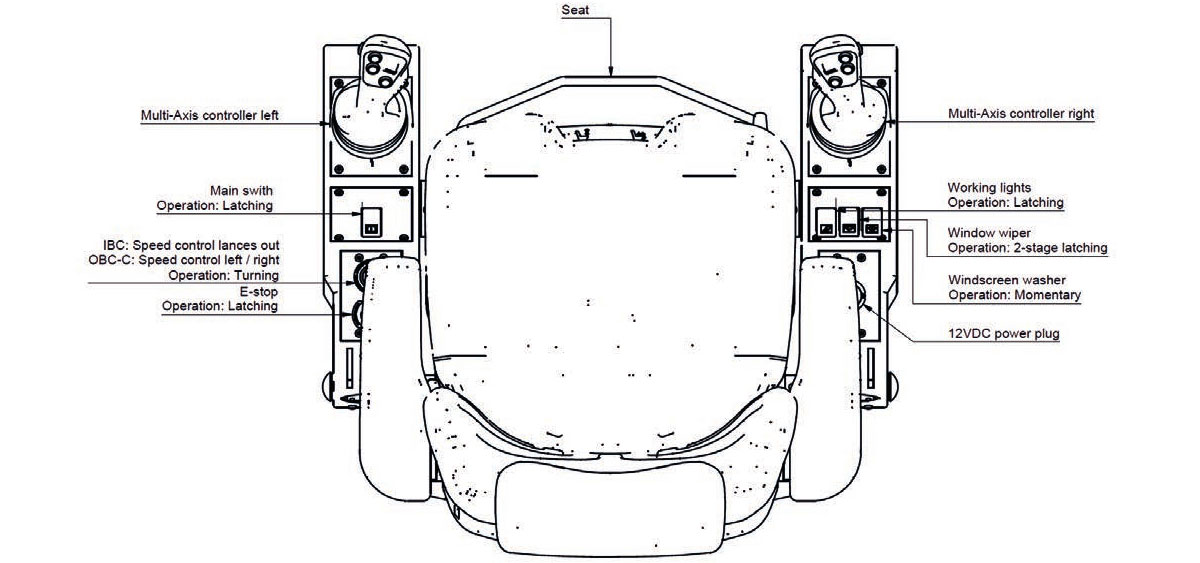

IBC-5는 생산적인 튜브 청소 기계입니다. IBC-5는 세탁 또는 번들 청소 베이에서 사용하도록 개발되었으며 가동 중단 중 최소한의 시간 내에 번들을 청소할 수 있는 최고의 도구입니다. The machine is operated safely and comfortably from the cabin. The cabin protects the operator against the high-pressure water and possible contamination while providing a clear view of the tube sheet.

제조사 정보
Peinemann Equipment B.V. is located at Mandenmakerstraat 190, 3194 DA Hoogvliet.

기술 사양
일반 사양(대략)
• 총 중량: 5,500kg(12,125lb)
• 높이(이동 모드): 236cm(92.9인치)
• 길이: 1,150cm(452.8인치)
• 너비: 220cm(86.6인치)
• 최소. 높이 랜스베드: 60cm(23.6인치)
• 최대 높이 랜스베드: 210cm(82.7인치)

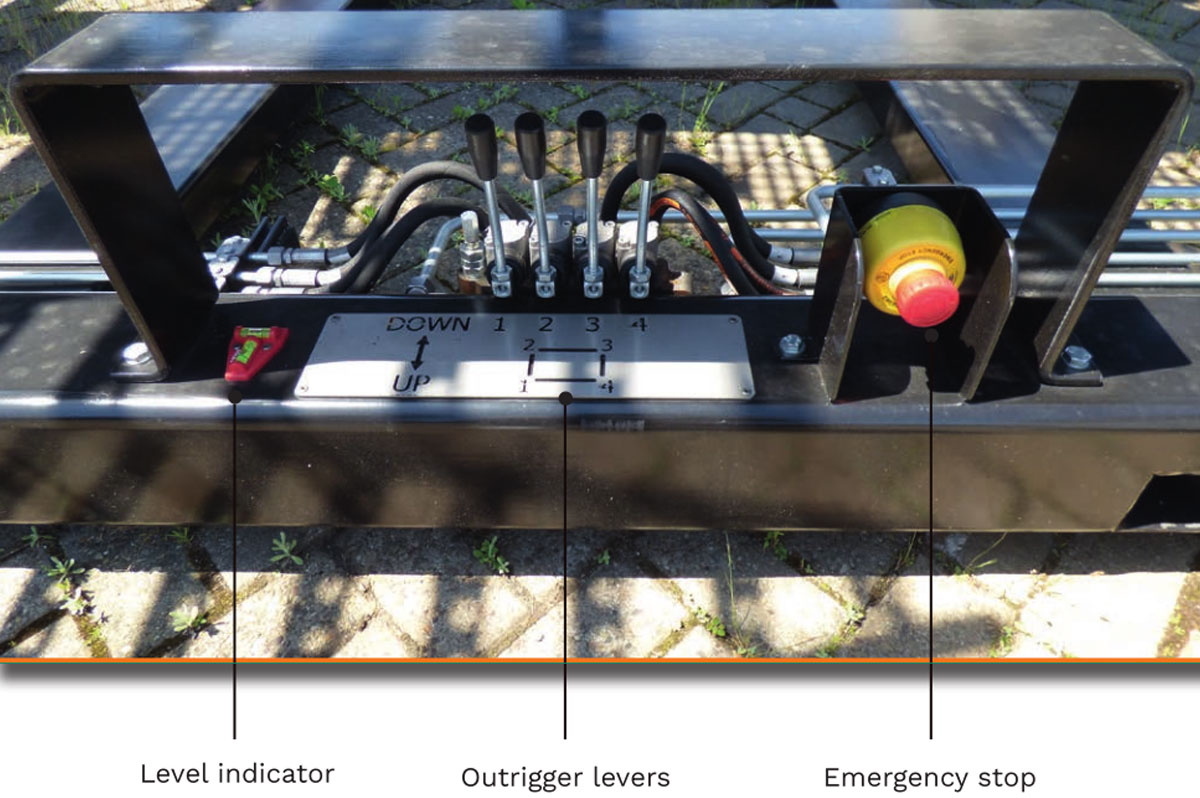

• 최대. height outriggers (option): 50 cm or 120 cm (19.7 or 47.2 in)
• Max lancebed left/right range: 150 cm (59.1 in)
• 최대. 랜스 작업 길이: 930 cm (366.1 in)
• 최대. 랜스 속도: 100cm/초(39.1인치/초)
• 랜스 피치: 22~45mm(0.9~1.8인치)
• Lance bed forward/backward movement: 60 cm (24 in)
• Forward thrust: 300 kg/lance (661.4 lb/ lance)
• Recommended water pressure: 1,000 bar (14,503 psi)
• 최대. 물 흐름: 200l/min(52.8gal/min)
• 유압 펌프: 17cc 8cc
• 유압 오일 탱크: 190리터(50.2갤런)
• 파워유닛 사양
• Dependent on diesel or electric power-unit
All hydraulic components are fitted with safety holding valves.

책임
Peinemann Equipment B.V.는 IBC-5의 설치 및 작동 중에 발생한 물질적, 비물질적 손해에 대해 책임을 지지 않습니다. Therefore, users are obliged to read the manual and handle the machine with care carefully.

일반 이용 약관
"Peinemann Equipment B.V.의 임대, 판매 및/또는 서비스 제공에 대한 모든 제안, 주문, 할당 및 계약에는 번호 24175469로 로테르담 상공회의소에 마지막으로 제출된 Peinemann의 일반 이용 약관이 적용됩니다. 일반 이용 약관은 Peinemann.nl에서도 확인할 수 있습니다. 기타 일반 이용 약관은 명시적으로 거부됩니다."

사용 목적

The Peinemann Equipment IBC-5 can solely be used for cleaning bundles. The IBC-5 must be installed correctly and placed on a stable surface. The operations need to be conducted in a designated area due to the risks associated with high-pressure water equipment. Operators must follow safety protocols and handle the IBC-5 with care. In addition, the IBC-5 comes ,with an electric or diesel power-unit. Make sure to follow the appropriate operating steps according to the type of power-unit.
The IBC-5 may only be installed, operated and maintained by qualified and trained personnel.
Before conducting actions of any kind, personnel must thoroughly read this manual. The instructions in this manual should be followed at any moment. Not following prescribed instructions could have serious consequences, such as physical injury and material damage.

안전 지침

The following safety instructions must be followed when operating the IBC-5.
• It is prohibited for unauthorized personnel to operate the IBC-5 or come near the site.
• Inform about the nature of the chemicals on the bundle. 의심스러운 경우 프로젝트 리더에게 문의하세요.
• Smoking, eating and drinking around the machine and inside the cabin is prohibited. Eating and drinking are only allowed after washing hands and palms thoroughly.
• Additional protection must be worn when working with contaminated material or chemicals.
• All personnel near the installation and inside the cabin must wear approved hearing protection.
• Everyone around the installation and the operator must know the location of medical equipment and fire extinguishers.
• All services must be accessible at all times. Placing obstacles in front of fire extinguishers and emergency exits is prohibited.
• All operations must be shut down when toxic fumes are detected.
